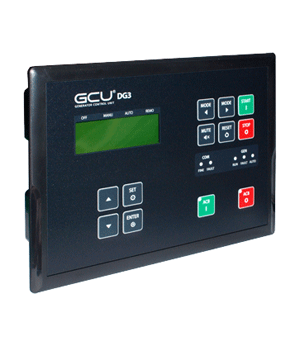

  GCU-DG3    Various Control Setting Options



Features

1. Automatic operating signals using power supply or    dry contact
2. RPM, oil pressure gauge, oil temp gauge, water    temp gauge , DC voltage, engine hour meter    included
3. Relay capability included
4. Engine stops when engine pause button pressed,    overspeed, oil pressure drop, high water    temperature, over frequency, low frequency,    voltage unbalance
5. Possible to stop engine when low voltage, over    current, currentunbalance(according to setting)
6. If no MPU signal during the normal operation ,    engine stops
7. If no generating power during the normal    operation, engine stops
8. Preheating function of engine preheating    plug(automatic start)
9. Surge protection circuit
10. Anti humid and vibration by molding treatment
11. Mount on the front - easy to use
12. Engine operating signal and fault signal

Specifications

1. Power Input : 8~36Vdc
2. Commercial Power Detection : 500Vac, 3P4W or 1P
3. Overall(mm) : W240 * H170 * D62
4. Panel Cut-out(mm) : W211 * H158
5. Weight(kg) : 1
6. Operating Temp : -20~70℃

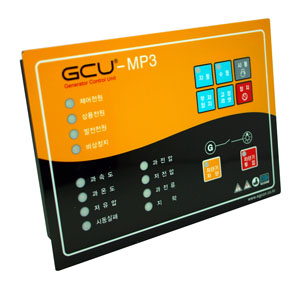

  GCU-MP3

Features

1. Can control engine generator and ACB by one     machine
2. For ACB(stand-alone type) panel
3. Fault alert and operating state contact included
4. Fault signal detectable
5. Engine stop and light fault engine stop selection    switch

Specifications

1. Power Input : 8~35Vdc
2. Overall(mm) : W240 * H172 * D54
3. Panel Cut-out(mm) : W211 * H162
4. Mounting Holes(mm) : W226 * H60 / 6Ф * 4Holes
5. Weight(g) : 900
6. Operating Temp : -20~70℃

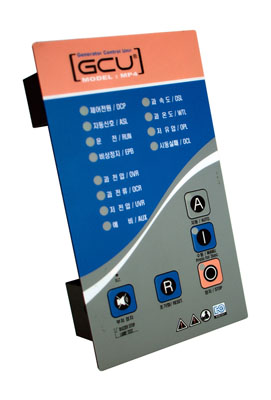

  GCU-MP4
Features

1. Automatic operation by commercial power    detection
2. Blackout detection(30sec), engine coolant(3min)    controllable
3. Automatic operation repeats 3 times(operation 7    sec, pause 7 sec)
4. Operating motor double protection by speed and    oil pressure switch
5. Engine stop selection switch included(ETR, ETS)
6. Relay indicating lamp included : engine stop by    selection
7. Engine control switch included
8. State indicating contact(operation, fault)

Specifications

1. Power Input : 8~35Vdc
2. Oveall(mm) : W120 * H210 * D48
3. Panel Cut-out(mm) : W112 * H182
4. Mounting Holes(mm) : W60 * H196 / 5Ф * 4Holes
5. Weight(g) : 700
6. Operating Temp : -20~40℃




182-3, Nae-Dong, Ojung-Gu, Bucheon-city, Kyonggi-Do, Korea Copyright(C) EGCON CO ., LTD. All rights reserved.





ATS-Y TYPE

Features

1. No need to compose separate control circuit
2. ACU-TS6 included
3. Remote control
4. Power input ports are on the upper side
   (can avoid incorrect connection)
5. Single-coil control structure - small and light

Specifications

1. Position control
2. Power Input : 220Vac, 10A
3. Rated Voltage : 600Vac, 50/60Hz, 125Vdc
4. Rated Current : 100A, 200A, 400A
5. Poles : 2P, 3P, 4P
6. Connecting on the front side






  ATS-B TYPE

Features

1. No need to compose separate control unit
2. ACU-TS6 included
3. Remote control
4. Power input ports are on the back side
5. Single-coil control structure - small and light
6. Loadable

Specifications

1. 2 Position control
2. Power Input : 220 Vac, 10A
3. Rated Voltage : 600Vac, 50/60Hz, 125Vdc
4. Rated Current : 600A, 800A, 1000A, 1200A
5. Poles : 3P, 4P
6. Connecting on the back side








 GCP-AL2

Features

1. Digital, semi automatic and loadable
2. Automatic operating signal : power supply or
   dry contact
3. Enclosures : ABC, AVR
4. Relay ability
5. Oil pressure gauge, water temp gauge, DC voltage,    engine hour meter included
6. Engine stops when emergency pushbutton    pressed, over speed, oil pressure drop, high water    temp, over/low frequency, voltage unbalance
7. Engine optionally stops when over current,
   low voltage, current unbalance
8. During normal operation engine stops when no MPU    signal or no generator voltage
9. Stop solenoid damage prevention circuit included
10. 3pcs of CT, control wire, engine sensor/switch    included

Specifications

1. Dimensions(mm) : W500 * H330 * D300
2. Mounting Holes(mm) : W420 * D190 / 10Ф *4Holes
3. Weight(kg) : 14









  GCP-AL5

Features

1. Semi automatic and loadable
2. Engine starts or stops via commercial power signal
3. Enclosures : ABC, AVR
4. Included meters : voltage, current, frequency,    engine protection circuit, oil pressure, coolant    temp, charged voltage, operation time recorder
5. Generator protection ability included
6. 3pcs of CT, control wire, engine sensor/switch    included

Specifications

1. Dimensions(mm) : W500 * H330 * D300
2. Mounting Holes(mm) : W420 * H190 / 10Ф *4Holes
3. Weight(kg) : 17






  GCP-FC1

Features

1. Easy to assemble - control parts and case are set apart
2. Parts simplification reduces material management costs
3. Automatical/Manual remote operation
4. Digital meter and relay included - can set elaborately
5. Through analog voltage meter, easy to check generator hunting and easy adjusting
6. Digital V, A, Hz, kW, pF, kWH meter included
7. Over voltage, low voltage, over current, ground over current relay included
8. Digital oil pressure, oil temp, coolant temp, battery voltage, operating hour meter included
9. Remote control by RS 485 MODBUS RTU protocol

Specifications

1. Dimensions(mm) : W540 * H440 * D160
2. Cut-out(mm) : W500 * H360
3. Mounting Holes(mm) : W520 * H220 / 8Ф * 4Holes
4. Weight(kg) : 16






  GCP-MS5

Features

1. Steel case - after-sales service available
2. Generator capacity selection switch included
3. Frequency protection circuit included
4. Over excitation block circuit(output over voltage) included
5. Stable operation within low remaining voltage

Specifications

1. Output : 63Vdc, 5A
2. Power Input : 1P 220Vac(190~277), 50/60Hz
3. Sensing Input : 1P 190~440Vac, 50/60Hz
4. Dimensions(mm) : W550 * H250 * D250
5. Mounting Holes(mm) : W336 * H140 / 10Ф * 4Holes
6. Weight(kg) : 12







  GCP-MS7  For Small Generator



Features

1. Enclosures : AVR, EPD-FM3, ABC(optional)

Specifications

1. Dimensions(mm) : W550 * H250 * D250
2. Mounting Holes(mm) : W490 * H140 / 10Ф * 4Holes
3. Weight(kg) : 15







  GCP-AB5

Features

1. Semi automatic and loadable
2. Engine starts and stops by commercial powersignal
3. Enclosures : ABC, AVR
4. Included meter : Voltage, current, frequency,
oil pressure, coolant temp, charged voltage,
operating hour meter
5. Can include MCCB up to 800A
6. Engine protection circuit included
7. Generator protection ability(optional)

Specifications

1. Dimensions(mm) : W750 * H550 * D450
2. Mounting Holes(mm) : W670 * H250 / 13Ф *4Holes
